Poker Hand Equity Is Intransitive

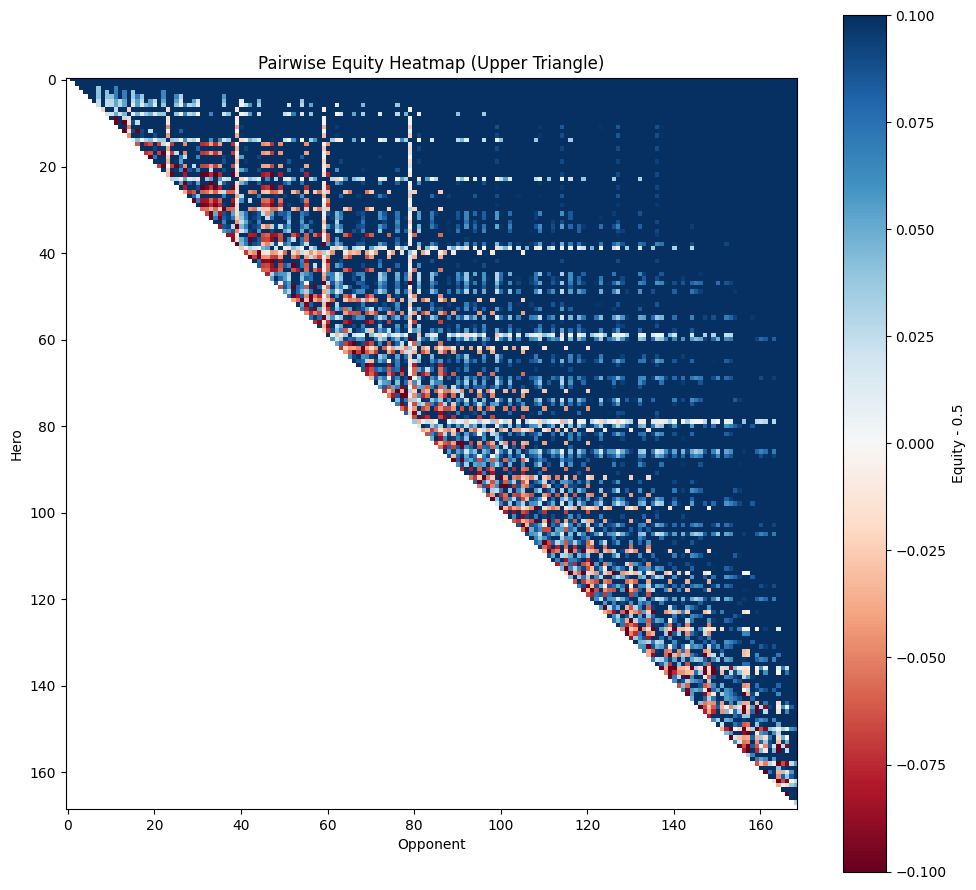

def plot_heatmap(hands, equity, order):
    n = len(order)
    M = np.full((n, n), np.nan)

    # Only fill the upper triangle to avoid mirrored duplicates
    for i, h1 in enumerate(order):
        for j, h2 in enumerate(order):
            if i < j and h1 != h2:
                M[i, j] = equity[(h1, h2)] - 0.5

    plt.figure(figsize=(9, 9))
    cmap = plt.get_cmap("RdBu").copy()
    cmap.set_bad(color="white")
    plt.imshow(M, cmap=cmap, vmin=-0.1, vmax=0.1)
    plt.colorbar(label="Equity - 0.5")
    plt.title("Pairwise Equity Heatmap (Upper Triangle)")
    plt.xlabel("Opponent")
    plt.ylabel("Hero")
    plt.show()

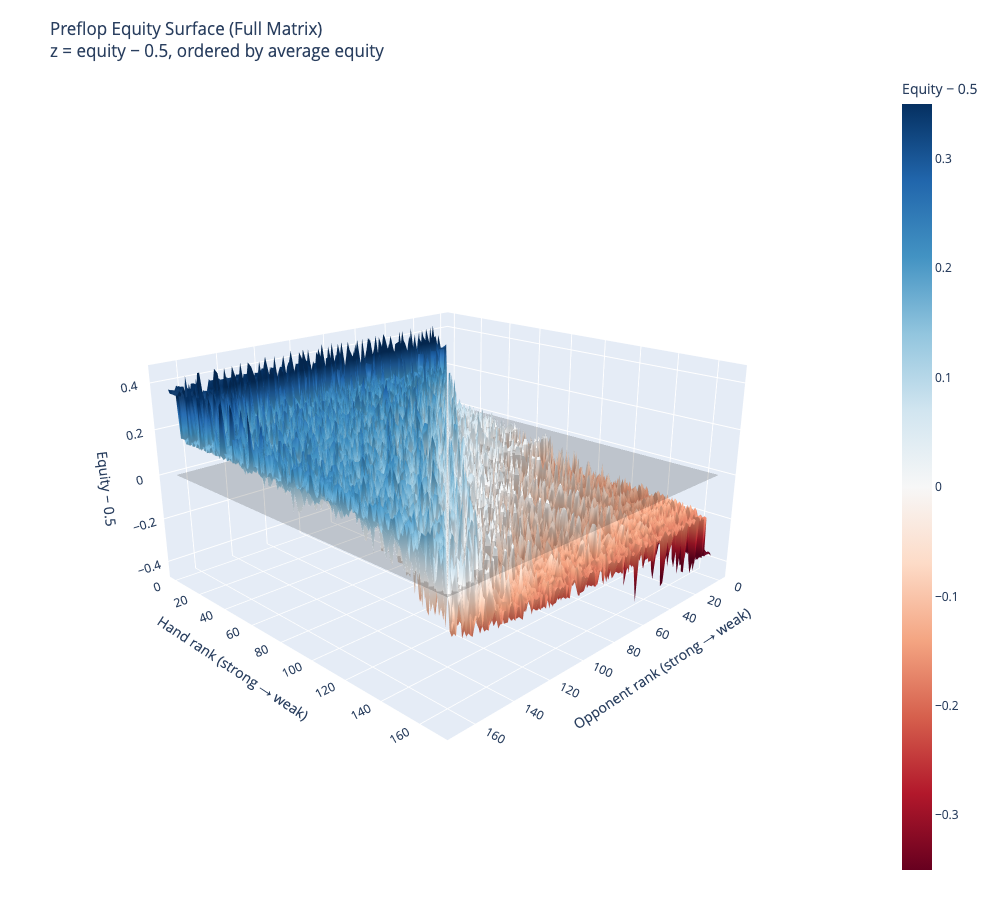

def plot_equity_surface(hands, equity, zlim=0.35):
    avg = avg_equity(hands, equity)
    order = sorted(hands, key=lambda h: avg[h], reverse=True)
    n = len(order)

    Z = np.zeros((n, n))
    for i in range(n):
        for j in range(n):
            if i == j:
                Z[i, j] = 0.0
            else:
                Z[i, j] = equity[(order[i], order[j])] - 0.5

    surface = go.Surface(
        z=Z,
        colorscale="RdBu",
        cmin=-zlim,
        cmax=zlim,
        showscale=True,
        colorbar=dict(title="Equity − 0.5"),
    )

    plane = go.Surface(
        z=np.zeros_like(Z),
        showscale=False,
        opacity=0.18,
        colorscale=[[0, "black"], [1, "black"]],
    )

    fig = go.Figure(data=[surface, plane])

    fig.update_layout(
        title="Preflop Equity Surface (Full Matrix)<br>"
        "z = equity − 0.5, ordered by average equity",
        scene=dict(
            xaxis_title="Opponent rank (strong → weak)",
            yaxis_title="Hand rank (strong → weak)",
            zaxis_title="Equity − 0.5",
            aspectmode="manual",
            aspectratio=dict(x=1, y=1, z=0.55),
            camera=dict(eye=dict(x=1.6, y=1.6, z=0.8)),
        ),
        width=1000,
        height=900,
        margin=dict(l=20, r=20, t=70, b=20),
    )

    fig.show()


def find_best_intransitive_cycle(hands, equity):
    wins = {a: [b for b in hands if a != b and equity[(a, b)] > 0.5] for a in hands}

    best = None
    best_score = -1.0

    for a in hands:
        for b in wins[a]:
            for c in wins[b]:
                if c == a or c == b:
                    continue
                if equity[(c, a)] > 0.5:
                    margins = [
                        equity[(a, b)] - 0.5,
                        equity[(b, c)] - 0.5,
                        equity[(c, a)] - 0.5,
                    ]
                    score = min(margins)
                    if score > best_score:
                        best_score = score
                        best = (a, b, c)

    return best, best_score

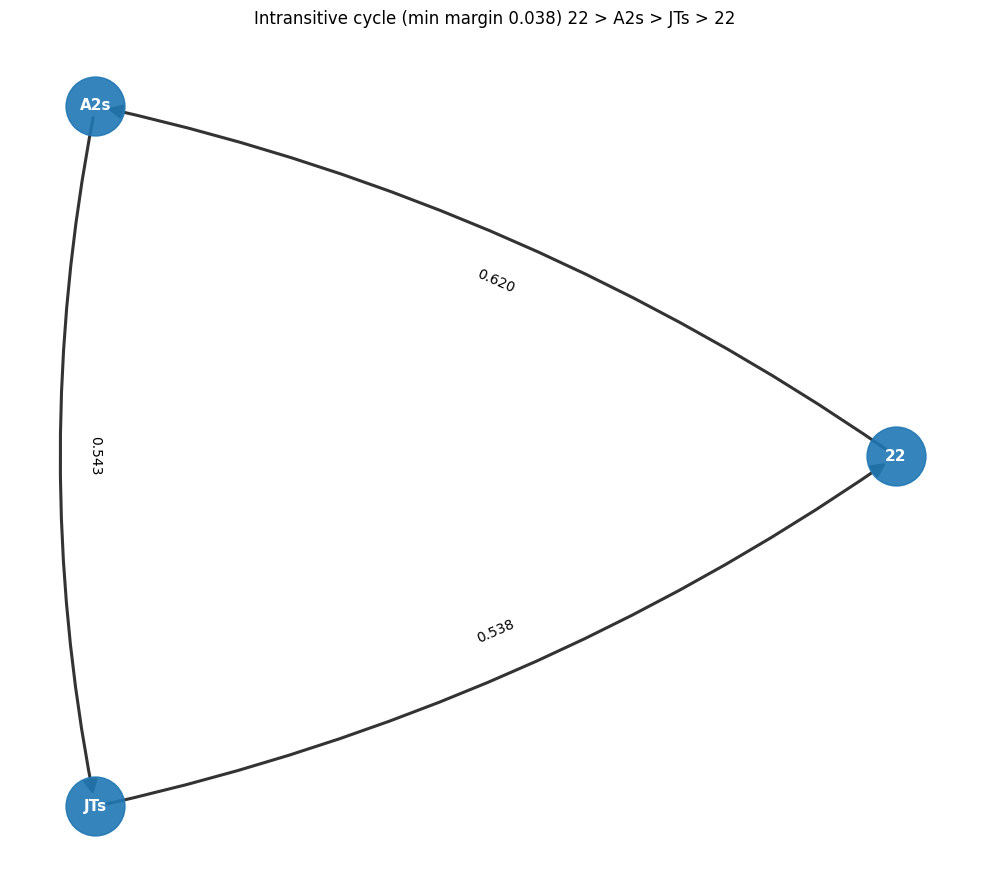

def plot_intransitive_cycle(hands, equity):
    cycle, score = find_best_intransitive_cycle(hands, equity)
    if not cycle:
        print("No intransitive 3-cycle found.")
        return

    a, b, c = cycle
    G = nx.DiGraph()
    edges = [(a, b), (b, c), (c, a)]
    for u, v in edges:
        G.add_edge(u, v, weight=equity[(u, v)])

    pos = nx.circular_layout(G)
    plt.figure(figsize=(6, 6))
    nx.draw_networkx_nodes(G, pos, node_color="#1f77b4", node_size=1800, alpha=0.9)
    nx.draw_networkx_labels(
        G, pos, font_color="white", font_size=11, font_weight="bold"
    )
    nx.draw_networkx_edges(
        G,
        pos,
        arrowstyle="-|>",
        arrowsize=20,
        width=2.2,
        edge_color="#333333",
        connectionstyle="arc3,rad=0.10",
    )

    edge_labels = {(u, v): f"{equity[(u, v)]:.3f}" for u, v in edges}
    nx.draw_networkx_edge_labels(G, pos, edge_labels=edge_labels, font_size=10)

    plt.title(f"Intransitive cycle (min margin {score:.3f}) {a} > {b} > {c} > {a}")
    plt.axis("off")
    plt.show()
